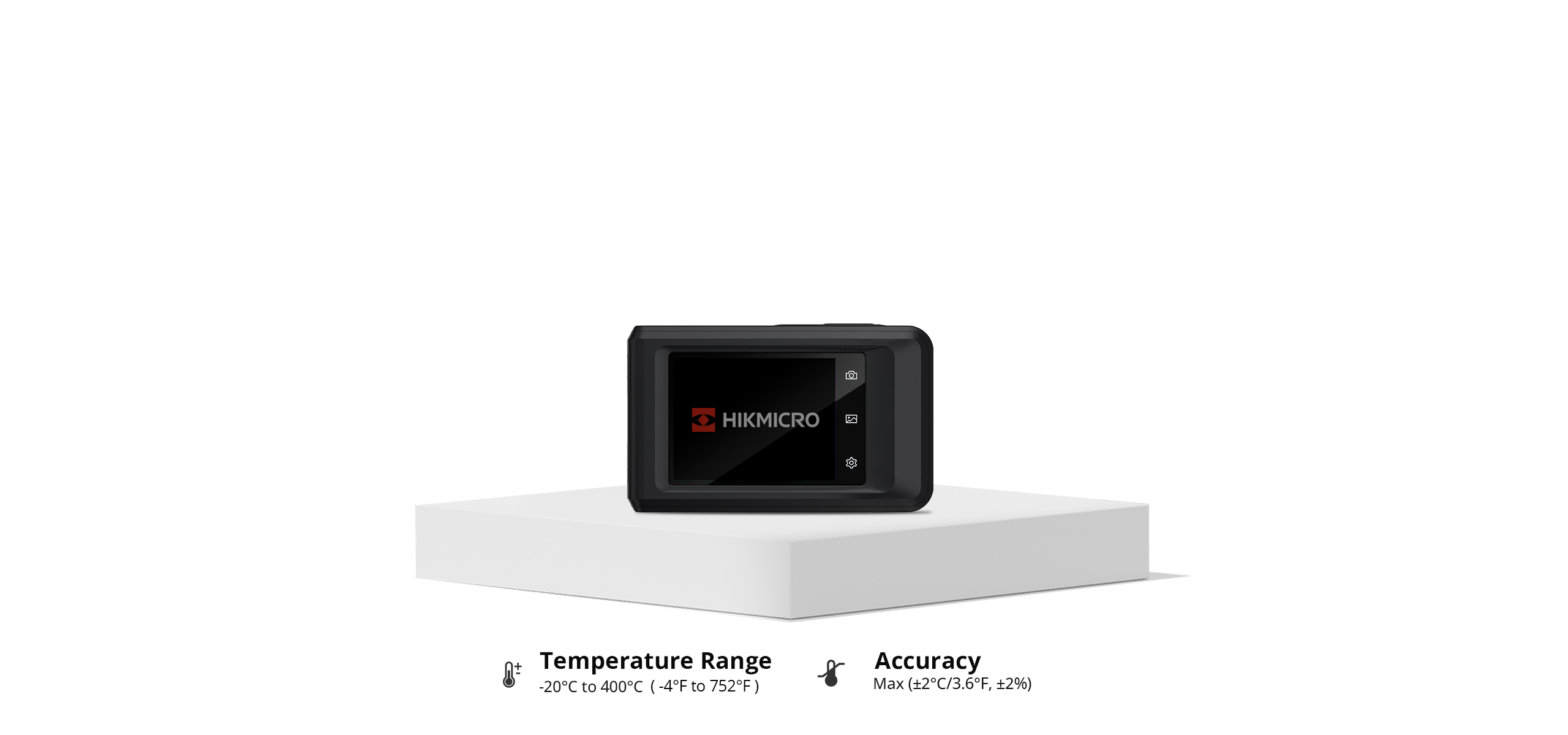

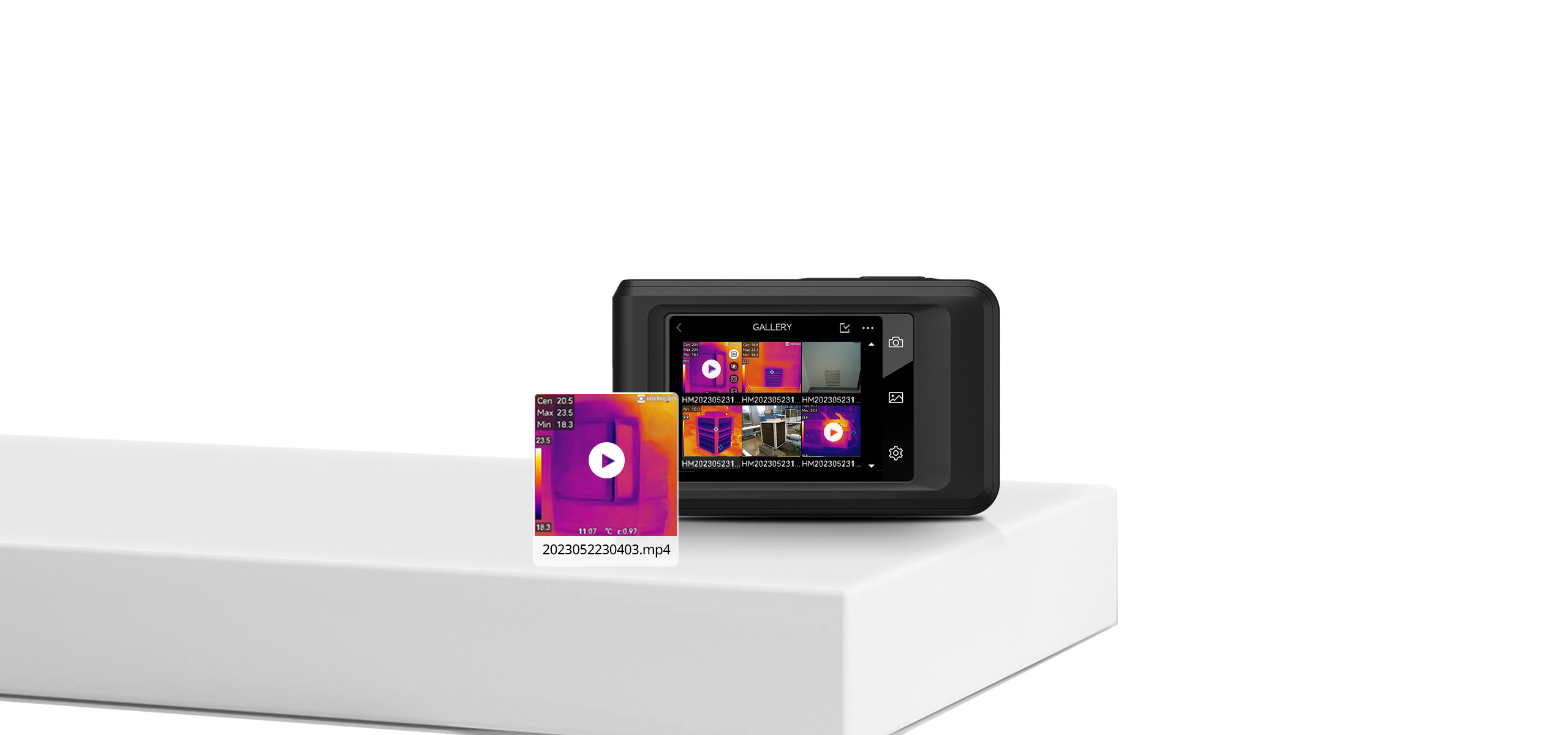

HIKMICRO Pocket Series is equipped with a high-resolution HIKMICRO VOx detector, an 8 MP optical camera, and a 3.5” LCD touch screen. It helps you quickly and efficiently locate the hidden problems and accurately measure abnormal temperature. The wide temperature range of -20°C to 400°C is ideal for building inspection, HVAC, electrical, and mechanical equipment maintenance. The 25 Hz frame rate keeps up with fast inspections, and the Wi-Fi function allows the Pocket to share images in real time. The Pocket Series is a powerful thermography tool in your pocket, so it is always there whenever you need it. Key Features : IR resolution: 256 × 192 (49, 152 pixels), NETD: ＜40 mK (@25°C, F# = 1.0) Support SuperIR Image enhancement technology on captured images and live-view Accurately measure...
HIKMICRO Pocket Series is equipped with a high-resolution HIKMICRO VOx detector, an 8 MP optical camera, and a 3.5” LCD touch screen. It helps you quickly and efficiently locate the hidden problems and accurately measure abnormal temperature. The wide temperature range of -20°C to 400°C is ideal for building inspection, HVAC, electrical, and mechanical equipment maintenance. The 25 Hz frame rate keeps up with fast inspections, and the Wi-Fi function allows the Pocket to share images in real time. The Pocket Series is a powerful thermography tool in your pocket, so it is always there whenever you need it.
Key Features :
IR resolution: 256 × 192 (49, 152 pixels), NETD: ＜40 mK (@25°C, F# = 1.0)
Support SuperIR Image enhancement technology on captured images and live-view
Accurately measure temperature from -20°C to 400°C ( -4°F to 752°F) Accuracy: Max. (± 2°C/3.6° F, ± 2%)
25 Hz image frequency
Thermal, Fusion, PIP, Visual, and Blending modes
Manual, automatic, and 1-Tap level and span
High temperature alarm Built-in 16 GB memory
LED work light
8MP visual camera
| Brand | Hikmicro (China) |
|---|---|
| Category | Thermal Imaging Camera |
| IR Resolution | 256 × 192 (49, 152 pixels) |
| SuperIR | Yes, on captured images and live view |
| NETD | < 40 mK (@ 25 °C, F#=1.0) |
| Image Frequency | 25 Hz |
| Detector Pitch | 12 μm |
| Spectral Range | 7.5 to 14 μm |
| Focal Length | 3.5 mm |
| F-number | F1.1 |
| Field of View | (FOV) 50° × 37.2° |
| Spatial Resolution | (IFOV) 3.43 mrad |
| Min. Focus Distance | 0.3 m (0.98 ft) |
| Visual Camera | 3264 × 2448 (8 MP) |
| Display | 640 × 480 Resolution, 3.5" LCD Touch Screen with auto-rotation |
MTEKPRO Technologies is now an official
Authorized Calibration Center of HIKMICRO Camera
Enquire now to get more information about
HIKMICRO Thermal Imaging Camera Testing Services.
