AA-Ultrasonic

The AA Ultrasonic acoustic probe is designed for use on air insulated terminations where a clear sound path between the electrically stressed insulation and the probe is present.

Where to buy
Send Enquiry

The AA Ultrasonic acoustic probe is designed for use on air insulated terminations where a clear sound path between the electrically stressed insulation and the probe is present.

Brand IPEC
Category Sensors
Frequency response40kHz
Receiving Sensitivity-65dB min at 40kHz (0dB = 1 volt/µbar RMS SPL)
Sensor head swivel360 degrees
Dimensions71 x 37 x 39 mm
Power Requirements12VDC, up to 150mA
Output ConnectorBNC Female
Weight0.05kg
CouplingMagnetic
The sensor is extremely sensitive and can detect activity below 10pC

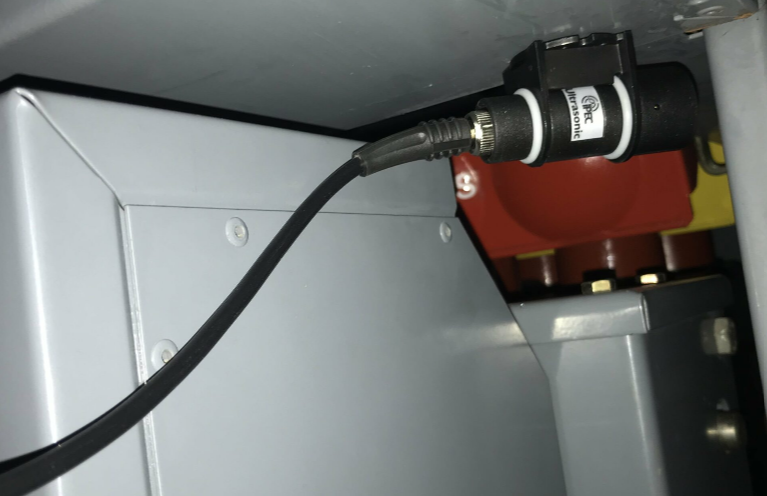

he probe has a magnetic base to allow coupling to steel enclosures and a swivel head so the detecting sensor can be aimed directly at the HV point.
