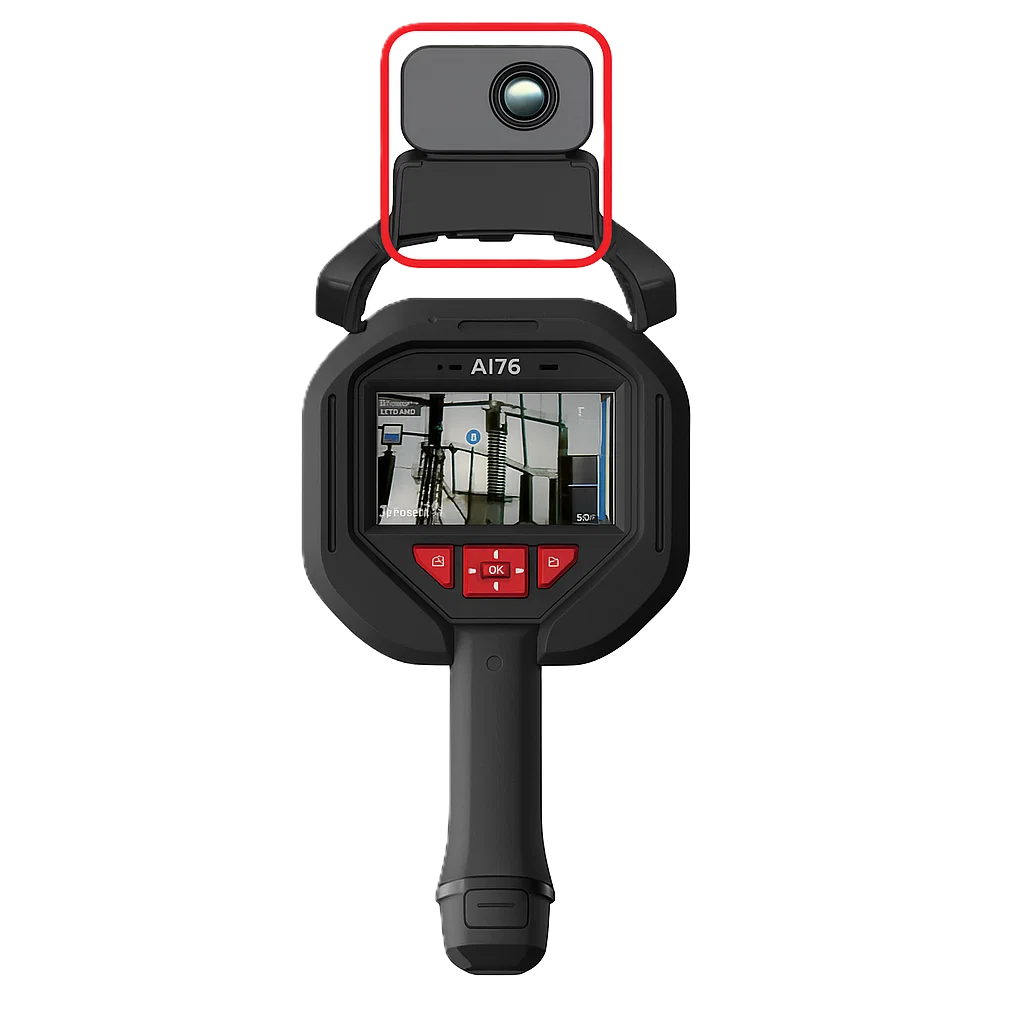

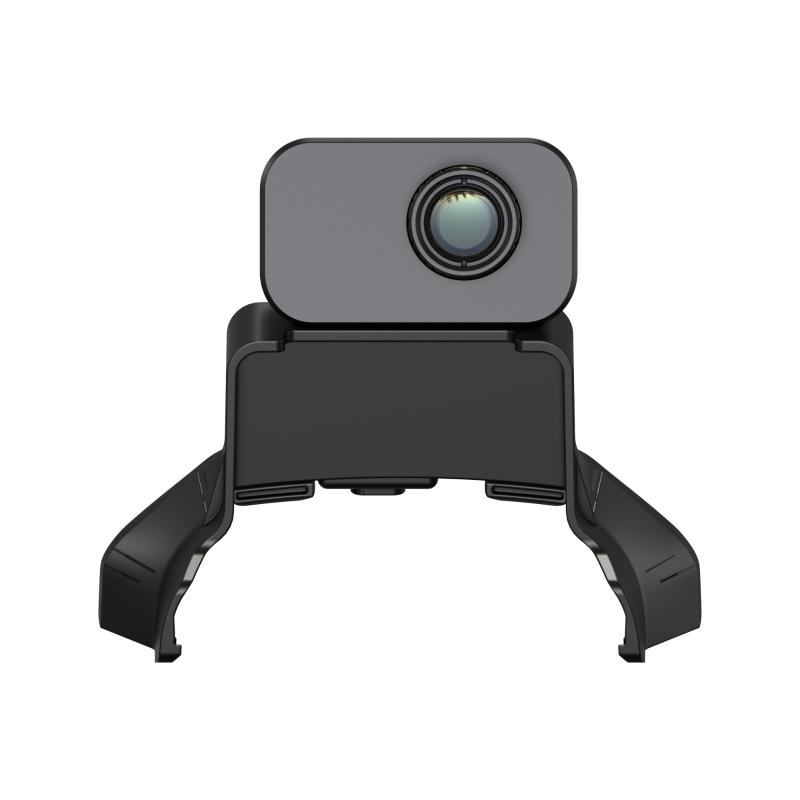

The Mini3R Thermal Imager is a product suite that complements Hikmicro's acoustic imaging camera. Featuring a 384x288 IR resolution, it enables full-screen infrared temperature detection with high accuracy. Its adjustable insertion direction and rotatable lens for focus adjustment allow seamless integration with the acoustic imaging camera, offering engineers a professional, dual-function solution for infrared and acoustic imaging detection. Key Features IR Resolution : 384× 288 (110,592 pixels) NETD: ≤ 35 mK (@ 25 °C, F#=1.0) Accuracy: Max (± 2°C/3.6°F, ± 2%) USB-C Interface 145 g Weight
The Mini3R Thermal Imager is a product suite that complements Hikmicro's acoustic imaging camera. Featuring a 384x288 IR resolution, it enables full-screen infrared temperature detection with high accuracy. Its adjustable insertion direction and rotatable lens for focus adjustment allow seamless integration with the acoustic imaging camera, offering engineers a professional, dual-function solution for infrared and acoustic imaging detection. Key Features IR Resolution : 384× 288 (110,592 pixels) NETD: ≤ 35 mK (@ 25 °C, F#=1.0) Accuracy: Max (± 2°C/3.6°F, ± 2%) USB-C Interface 145 g Weight
| Brand | Hikmicro |
|---|---|
| Category | Thermal Imaging Camera |
| IR Resolution | 384× 288 (110,592 pixels) |
| NETD | ≤35 mK (@ 25 °C, F#=1.0) |
| Image Frequency | 25Hz |
| Detector Pitch | 12μm |
| Spectral Range | 7.5 to 14 μm |
| Focal Length | 10mm |
| F-number | F1.0 |
