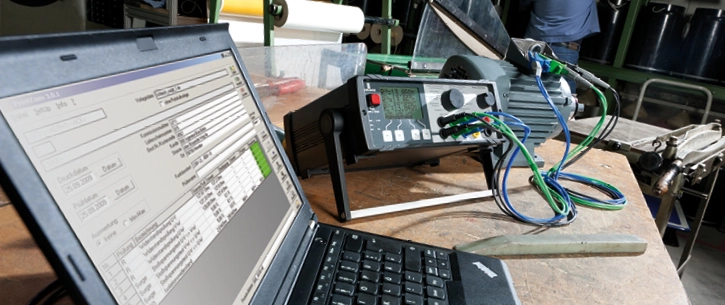

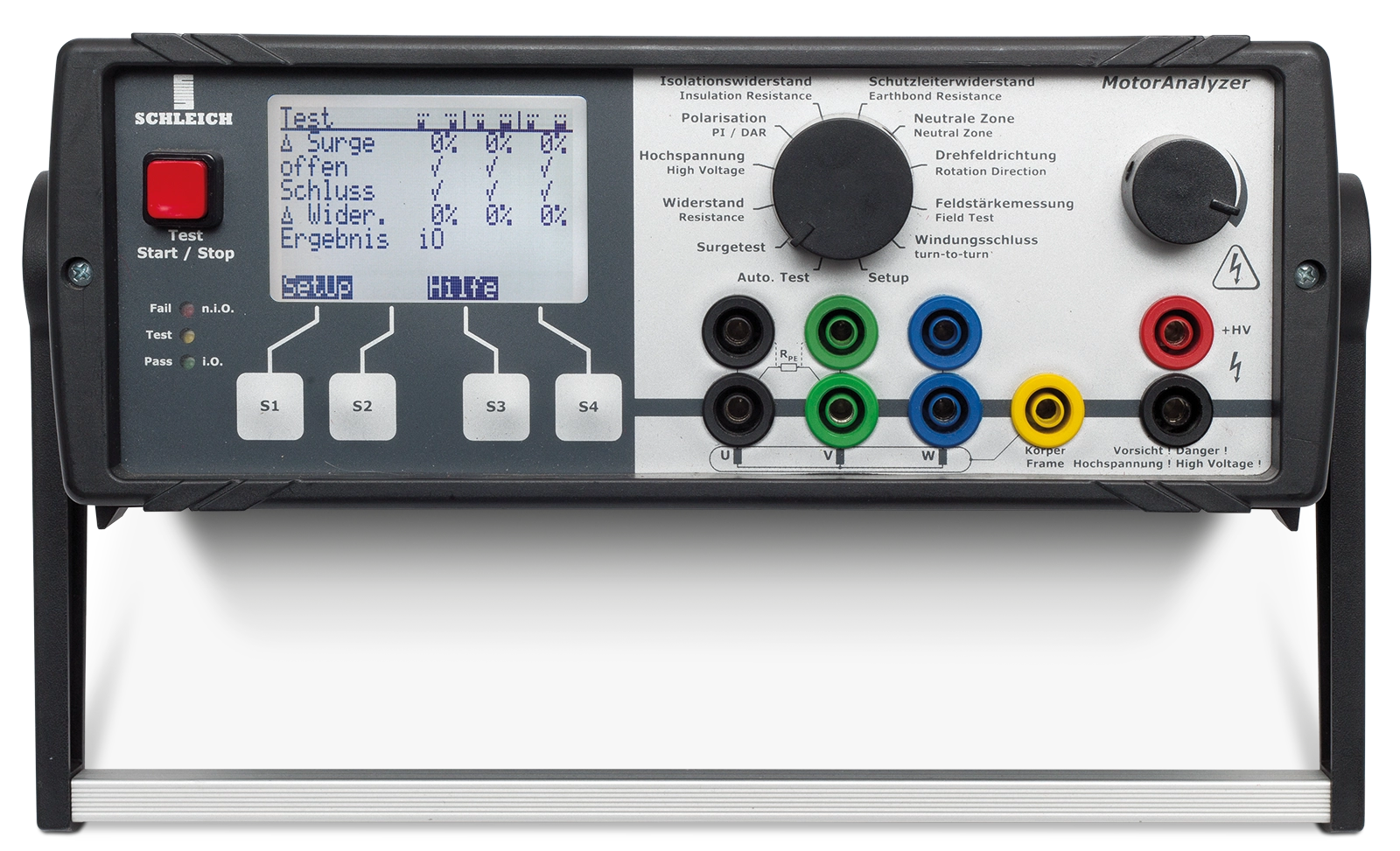

The MotorAnalyzer1 is a universal tester for testing electric motors and windings. It combines 10 different test methods in a user-friendly and mobile device. The combination of test methods, the compact design and the battery operation make the MotorAnalyzer1 an ideal tool for on-site use – even if the DUT is diffi cult to access. For testing a three-phase motor, the three winding leads and the motor frame are connected to the tester. With surge and resistance test, the MotorAnalyzer1 now analyzes the motor fully automatically. After that, a high-voltage test is performed at the motor, allowing to evaluate the motor in a fast and reliable manner.
The MotorAnalyzer1 is a universal tester for testing electric motors and windings. It combines 10 different test methods in a user-friendly and mobile device. The combination of test methods, the compact design and the battery operation make the MotorAnalyzer1 an ideal tool for on-site use – even if the DUT is diffi cult to access. For testing a three-phase motor, the three winding leads and the motor frame are connected to the tester. With surge and resistance test, the MotorAnalyzer1 now analyzes the motor fully automatically. After that, a high-voltage test is performed at the motor, allowing to evaluate the motor in a fast and reliable manner.
| Brand | Schleich |
|---|---|
| Category | Motor Analyzer |
| Test voltage | 12 V |
| Evaluations | Correlation (SCHLEICH patent) |
| Display of deviations | in % |
| Comparison method | between the phases |
| Automatic switch-over of test connections | yes |
