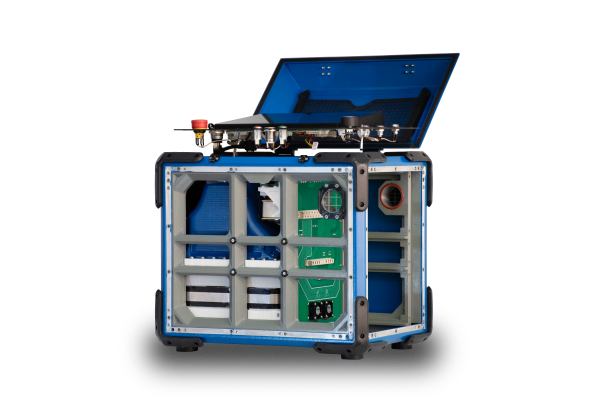

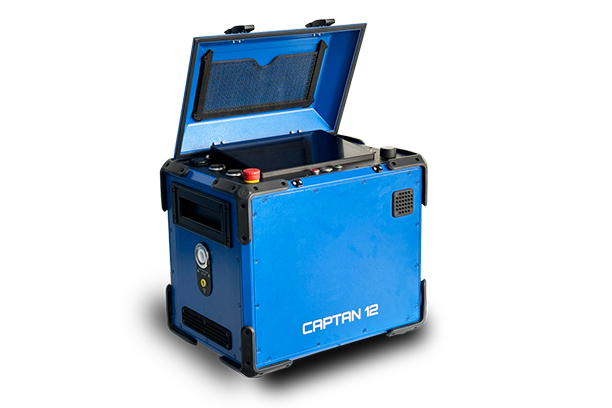

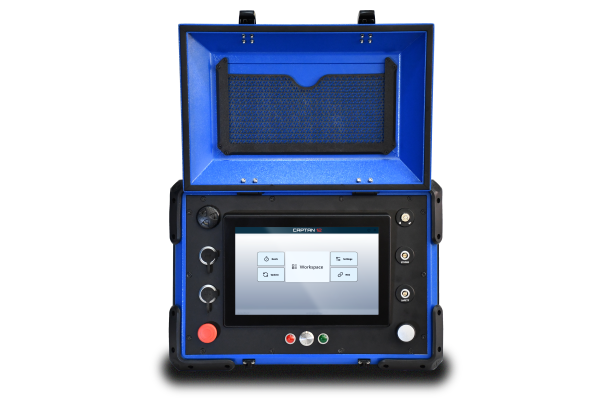

CAPTAN 12 is a modular device consisting of the following components: * Power supply module (to handle variations in input voltage magnitude and frequency) * Measurement module (to feature automatic selection of the appropriate measurement range) Inverter module (to provide fully controllable output signals for precise and repeatable test results) * Touch screen LCD module (to monitor and control of the test process) * These modules can be easily replaced by our trained service representatives
CAPTAN 12 is a modular device consisting of the following components: * Power supply module (to handle variations in input voltage magnitude and frequency) * Measurement module (to feature automatic selection of the appropriate measurement range) Inverter module (to provide fully controllable output signals for precise and repeatable test results) * Touch screen LCD module (to monitor and control of the test process) * These modules can be easily replaced by our trained service representatives
| Brand | Wisegrid Energy |
|---|---|
| Category | Tan Delta Tester |
| Output Voltage | 50 ... 12000 V RMS @ 45 ... 75 Hz |
| Output Voltage Frequency | 10 ... 400 Hz (Voltage < 5kV)* |
| Maximum Measuring Current | 5 A RMS |
| Number of Inputs | 2 (Input A and Input B) |
| Internal Reference | Normal Capacitor |
| Safety Features | Open Circuit Detection (inputs, test, and safety GND), Safety Handheld Switch, Internal Warning Indicator (such as Overtemperature), Internal Buzzer |
| Connectivity | Wi-Fi connection support |
| Measurement Modes | Support of UST, GST, and GST–g modes |
| Visual Guidance | Specific test rooms with corresponding wiring diagrams depending on test parameters |
