The MotorAnalyzer1 – a universal tool

 Universal tester for electric motors and windings

The MotorAnalyzer1 is a universal tester for testing electric motors and windings. It combines 10 different test methods in a user-friendly and mobile device. The combination of test methods, the compact design and the battery operation make the MotorAnalyzer1 an ideal tool for on-site use – even if the DUT is diffi cult to access.

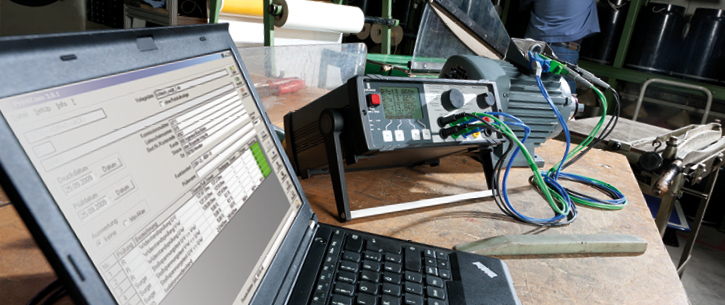

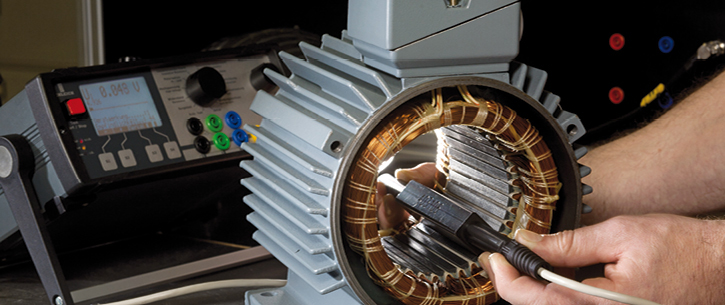

For testing a three-phase motor, the three winding leads and the motor frame are connected to the tester. With surge and resistance test, the MotorAnalyzer1 now analyzes the motor fully automatically. After that, a high-voltage test is performed at the motor, allowing to evaluate the motor in a fast and reliable manner.

Key Features :

Surge voltage

High-voltage DC up to 4 kV

Insulation up to 100 GΩ Resistance

gt;4-wire method Battery operation

Automatic switch-overs

Key Facts :

•Ten test methods

• High-voltage up to 4000 V

• Fully-automatic fault analysis

• Automatic switch-over between the 3 motor-connection leads

• Manual and automatic tests

• Locating winding faults

• Working with AC power and/or battery power

• Light weight

• Rotary switch for a fast selection of test methods

• Integrated result storage for transmission via RS232 or USB interface

• Storing and printing test results via PrintCom

With the PrintCom7 software, you can export all test results from the MotorAnalyzer1 to a PC. The test results can be printed directly after the test or at a later time. The test results are stored in Excel® format – based on Excel® protocol forms preconfigured by us.

By adding additional information or through an individual design, e.g. with your logo, PrintCom7 allows you to adapt the test protocol to your requirements. The delivery extent already includes a large
