PD Detector

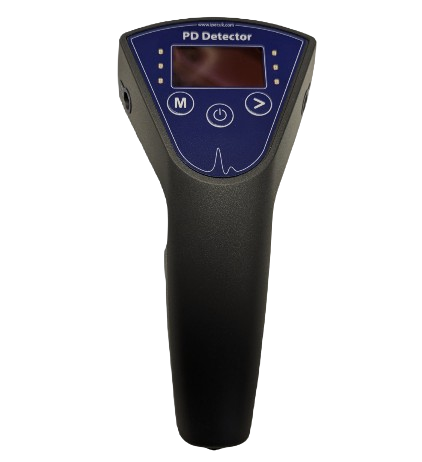

The PD Detector is an on-line partial discharge (PD) spot tester for HV assets. The instrument detects TEV signals generated by internal discharge in Air Insulated Switchgear (AIS), acoustic discharge generated by surface tracking or corona, high-frequency signal generated by cable partial discharge, and ultra-high frequency signal generated by internal discharge in Gas Insulated Switchgear (GIS). A mobile device receives data directly from the instrument for display and synchronisation with a central server.

Where to buy
Send Enquiry

The PD Detector is an on-line partial discharge (PD) spot tester for HV assets. The instrument detects TEV signals generated by internal discharge in Air Insulated Switchgear (AIS), acoustic discharge generated by surface tracking or corona, high-frequency signal generated by cable partial discharge, and ultra-high frequency signal generated by internal discharge in Gas Insulated Switchgear (GIS). A mobile device receives data directly from the instrument for display and synchronisation with a central server.

Brand IPEC
Category Partial Discharge Tester
Measurement Range0 to 80dBmV
Measurement Bandwidth 3 to 200MHz (with FM Bandstop)
Resolution1dB (Accuracy ±1dB)
Noise RejectionYes, with PRPD
Enclosure Injectionmoulded plastic case
PD and Noise : Advanced PD and Noise - the only device that shows you PD level and Noise Level
Hear the PD: only instrument available that allows the user to hear PD activity on all sensors
Widescreen Colour Touchscreen : Huge high resolution display for better PD viewing
Wireless Sync In-built : patented in-built wireless sync to ensure PD viewed in phase with power cycle
